Automatic calculations
Structural calculations are performed automatically within Statcon using 3D Finite Element Analysis (FEA). Customers select the relevant national application to verify designs and use an inbuilt design guide to simplify data input. The calculation results are displayed on screen in a graphical, quick and easy-to-read, format.
3D visualisation
Statcon is easy to learn, fast, efficient and user-friendly with several advantages such as 3D visualisation of designs, fast data input, exportable results and clear to read printouts.
Automatic load calculation
Enter the construction site, building dimensions, and the building type and Statcon will automatically calculate the snow and wind load for the current site using geographical references. Load combinations, for the current national selection, are created dynamically based on the specified loads.
Hanger design
Apply, edit, and design different joist hangers in your designs to connect elements within the software.
Core features
Built in and custom templates
With Statcon it is quick and easy to add information using built in or custom templates.
Timber joist failure notification
The vibration check feature makes it easy to verify vibration and failure characteristics of timber joist floors. The software manages failure control on wood-based floor joists.
Use a full range of materials
Statcon supports design and dimensions for wood, glulam, LVL, Ibeams and steel profiles, including: IPE, HEA, HEB, HEM, UNP, UPE, KKR, VKR, pipes and rods.
Joints
Joints are easy to create and edit with the effective guides and editing tools.

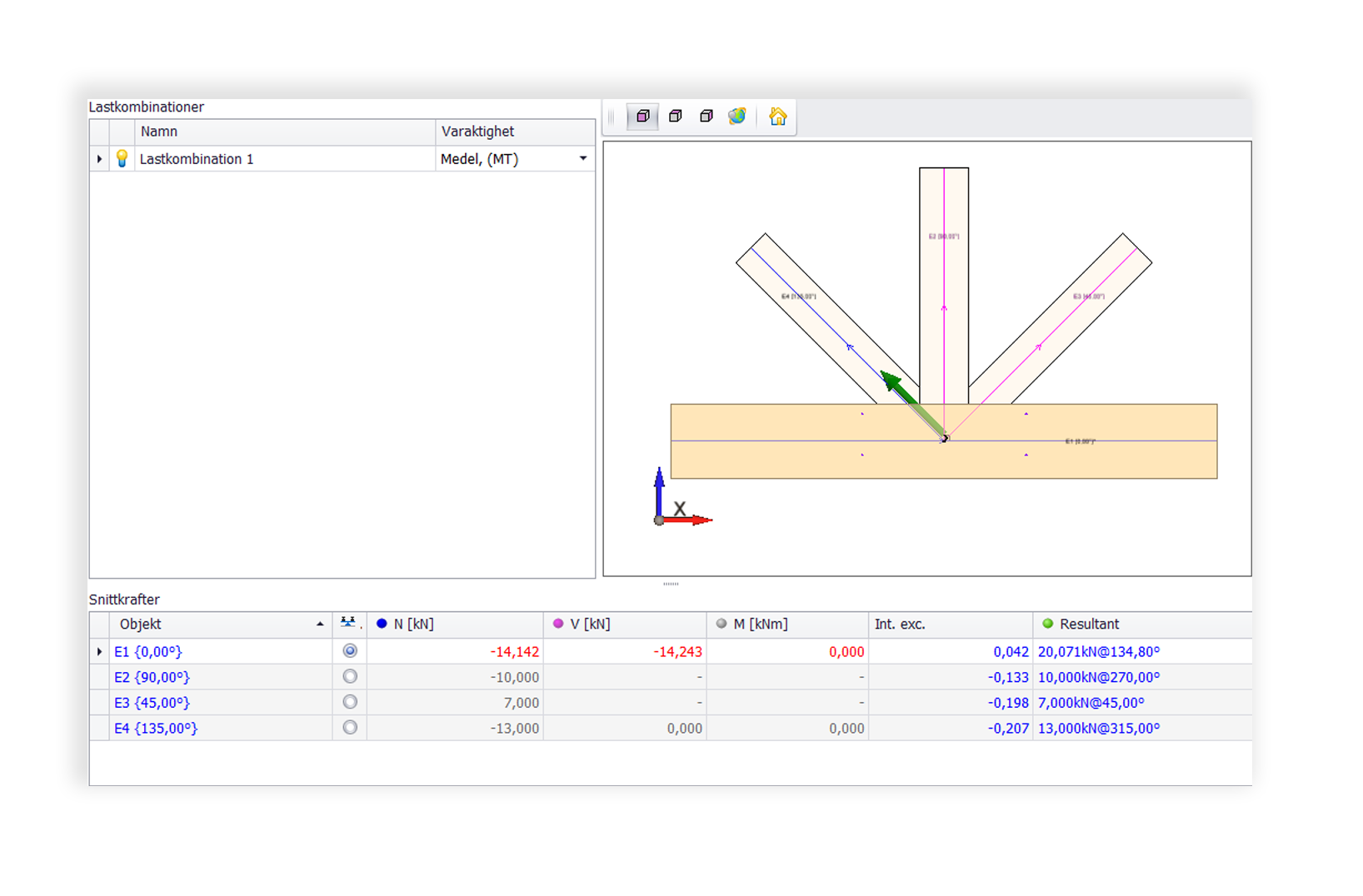

Loads
Loads are specified for each element and support. If wanted, multiple load cases can be easily designed. Statcon helps keep the forces in the joint in balance. If the joint is unbalanced, the user is notified of this.

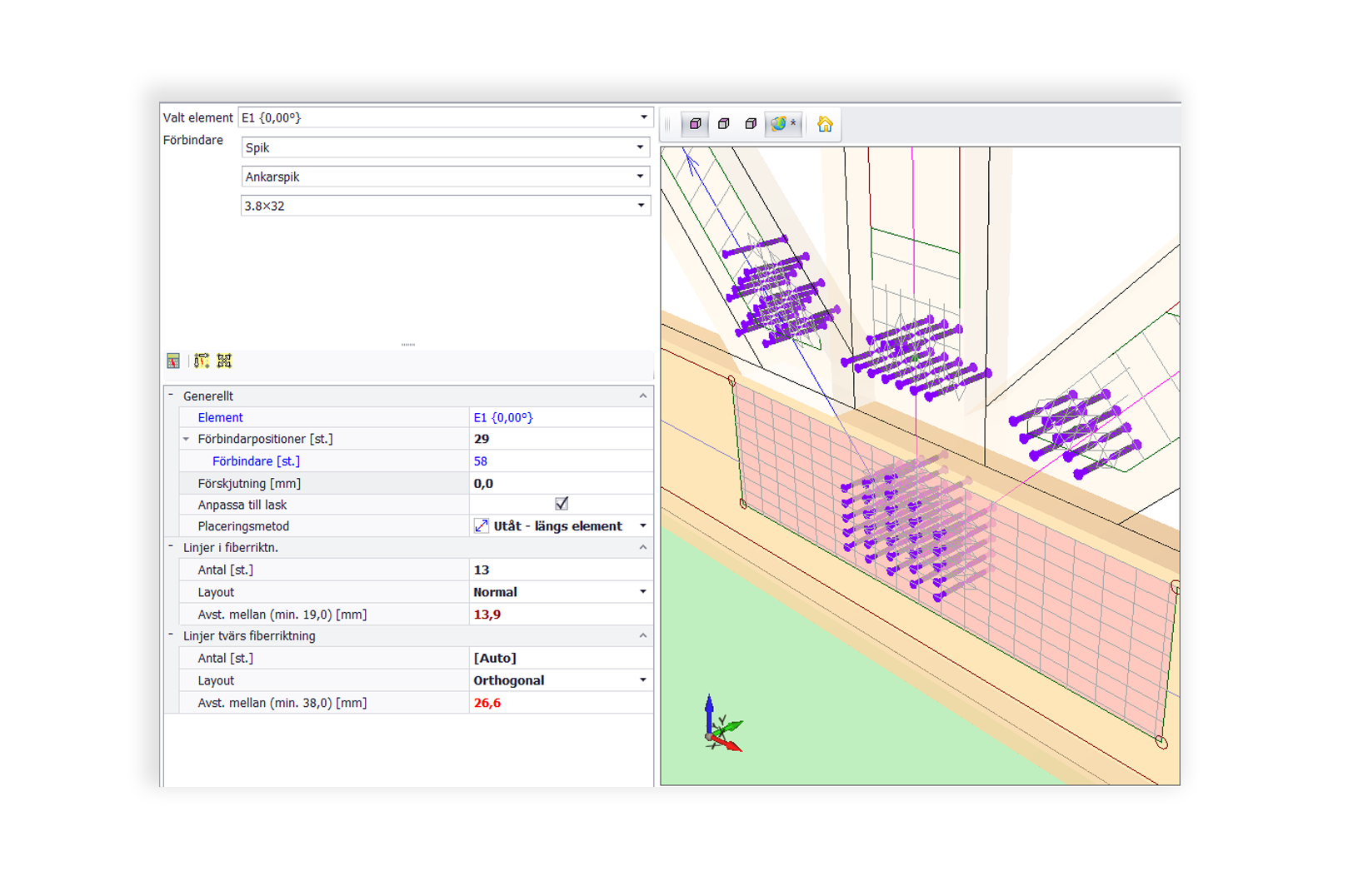

Connector layout
Statcon positions connectors according to the rules for edge, end, and mutual distance according to the current code. This can be done automatically or manually.
Gussets
Gussets can be shaped automatically or manually drawn. Select between outside or slotted gussets. The steel gussets are analysed with FE, while wooden gussets are validated with standard code checks.
Export
Joints can be exported to CAD software via DXF.
